Donaldson P762921 Replaces the Filtrec WP574

Donaldson P762921
Representative product image Product image feedback

Donaldson P762921 Replaces the Filtrec WP574

P762921
Donaldson
Filtrec WP574
Description

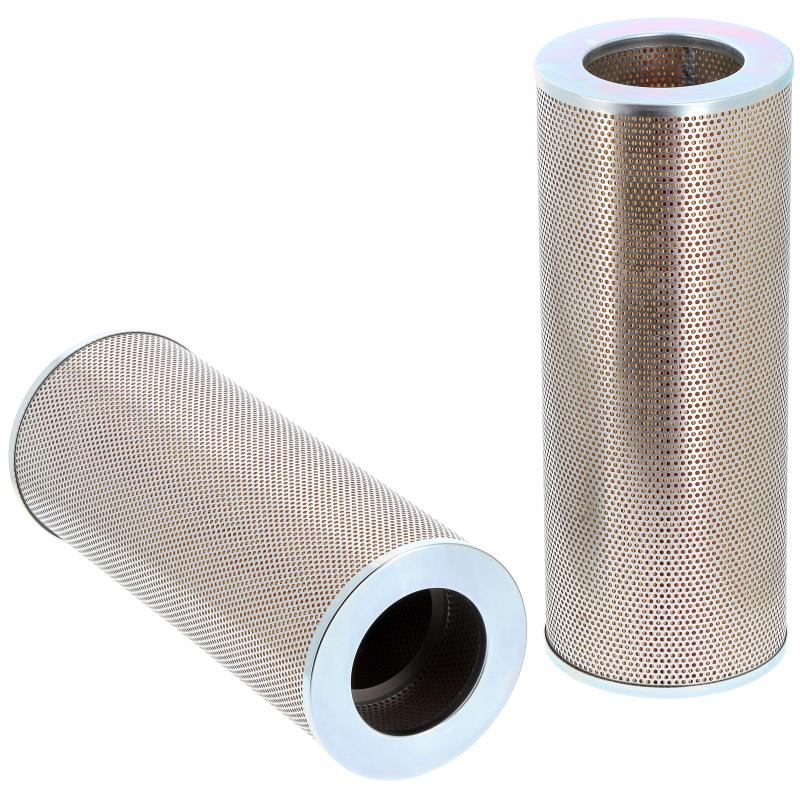

Genuine Donaldson P762921 Hydraulic Filter, Cartridge.

Brand: Donaldson
Price Matched
$77.00
15
0.06 kg
8421.29.80.90
Italy
6.77 kg
8421.99.90
Italy
Shipping Terms

Description

Genuine Donaldson P762921 Hydraulic Filter, Cartridge.

Specification

StyleSpecial Filter
Efficiency 125µ @ β2
Outer Diameter 178.0 mm
Inner Diameter 110.0 mm
Length 450.0 mm
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Temperature Range -30 - +100°C

Approved Product

Find out more
Filtrec Brand Logo

Same Fit-Form & Function

As the Genuine Filtrec WP574

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Special Filter
Outer Diameter 178.0 mm
Inner Diameter 110.0 mm
Length 450.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal
Temperature Range -30 - +100°C
