MICROFIT MFHSU70159 Replaces the Pall UE319AZ13H

MICROFIT MFHSU70159
Representative product image Product image feedback

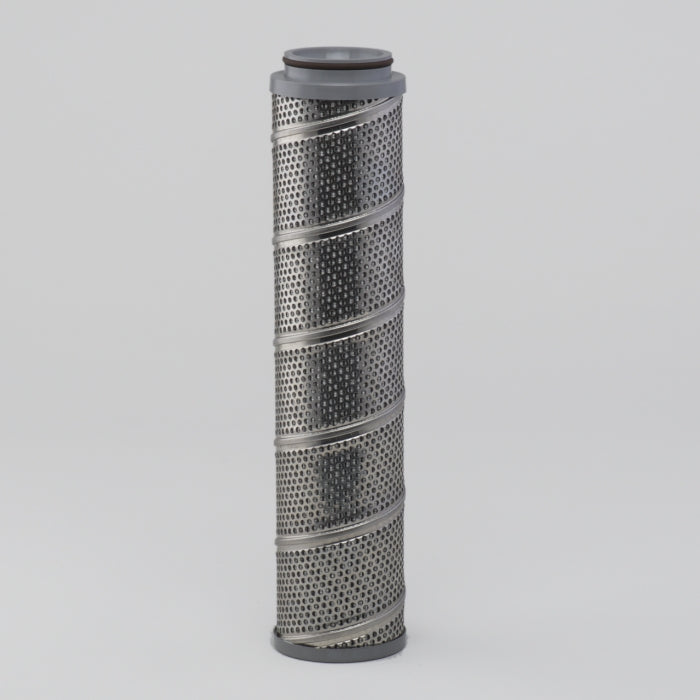

MICROFIT® UltraGen III MFHSU70159 Replaces the Pall UE319AZ13H

MFHSU70159
MICROFIT
Pall UE319AZ13H
Description

The MICROFIT® UltraGen III MFHSU70159 is the MICROFIT® approved replacement to the Pall UE319AZ13H. Engineered and manufactured in Great Britain the MFHSU70159

Brand: MICROFIT
Price Matched
$235.00
10
1.37 kg
8421.99.90
United Kingdom
0.62 kg
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70159 is the MICROFIT® approved replacement to the Pall UE319AZ13H. Engineered and manufactured in Great Britain the MFHSU70159

Specification

StyleSuction Filter
Efficiency 11µ @ β200
Efficiency 24µ @ β1000
Outer Diameter 79 mm
Inner Diameter 63.5 mm
Length 368 mm
MediaGlass Fiber (Anti-Static)
Flow DirectionIN-OUT
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall UE319AZ13H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
1µ @ β200
Efficiency 2 4µ @ β1000
Style Suction Filter
Outer Diameter 79 mm
Inner Diameter 63.5 mm
Length 368 mm
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
