MICROFIT MFHSU70155 Replaces the Pall UE319AN13H

MICROFIT MFHSU70155
Representative product image Product image feedback

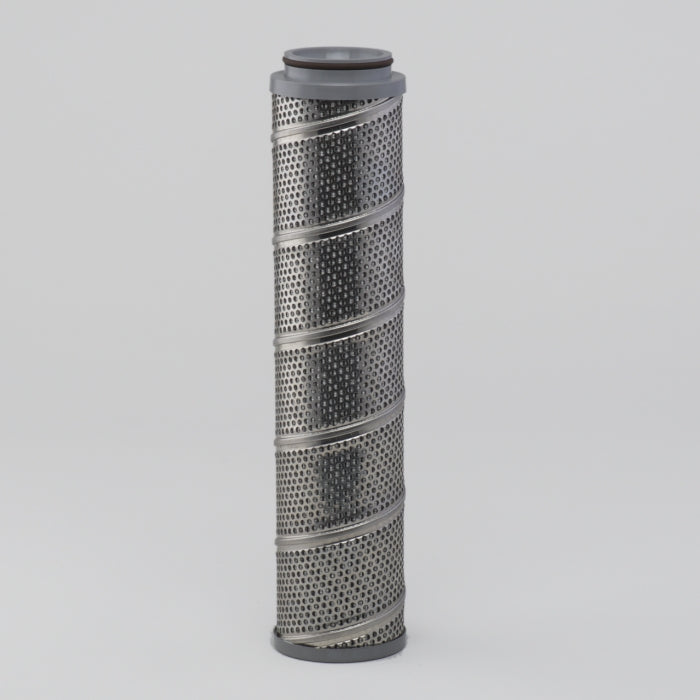

MICROFIT® UltraGen III MFHSU70155 Replaces the Pall UE319AN13H

MFHSU70155
MICROFIT
Pall UE319AN13H
Description

The MICROFIT® UltraGen III MFHSU70155 is the MICROFIT® approved replacement to the Pall UE319AN13H. Engineered and manufactured in Great Britain the MFHSU70155

Brand: MICROFIT
Price Matched
$215.00
10
1.24 kg
8421.99.90
United Kingdom
0.56 kg
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70155 is the MICROFIT® approved replacement to the Pall UE319AN13H. Engineered and manufactured in Great Britain the MFHSU70155

Specification

StyleSuction Filter
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 79 mm
Inner Diameter 63.5 mm
Length 368 mm
MediaGlass Fiber (Anti-Static)
Flow DirectionIN-OUT
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall UE319AN13H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Suction Filter
Outer Diameter 79 mm
Inner Diameter 63.5 mm
Length 368 mm
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
