MICROFIT MFHSU70233 Replaces the Pall UE210AN13Z

MICROFIT MFHSU70233

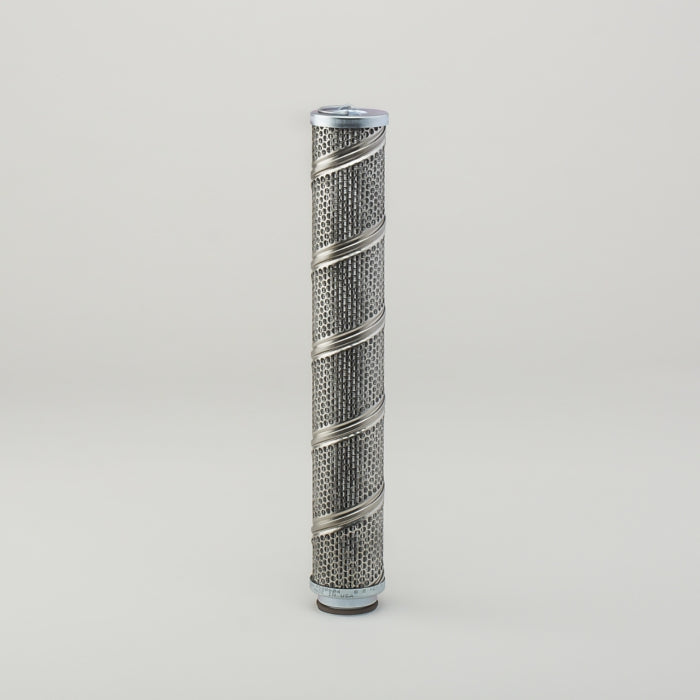

Representative product image Product image feedback

MICROFIT® UltraGen III MFHSU70233 Replaces the Pall UE210AN13Z

MFHSU70233
MICROFIT
Pall UE210AN13Z
Description

The MICROFIT® UltraGen III MFHSU70233 is the MICROFIT® approved replacement to the Pall UE210AN13Z. Engineered and manufactured in Great Britain the MFHSU70233

Brand: MICROFIT
Price Matched
$174.00
0.66 kg
8421.99.90
United Kingdom
0.3 kg
8421.99.90
Italy
0.36 kg
8421.99.90
France
8421.99.90
United States
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70233 is the MICROFIT® approved replacement to the Pall UE210AN13Z. Engineered and manufactured in Great Britain the MFHSU70233

Specification

StyleSuction Filter
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 54 mm
Inner Diameter 42.5 mm
Length 367 mm
MediaGlass Fiber (Anti-Static)
Flow DirectionIN-OUT
Seal MaterialViton
Temperature Range -25 - +120°C

Approved Product

Find out more
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall UE210AN13Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Suction Filter
Outer Diameter 54 mm
Inner Diameter 42.5 mm
Length 367 mm
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -25 - +120°C
