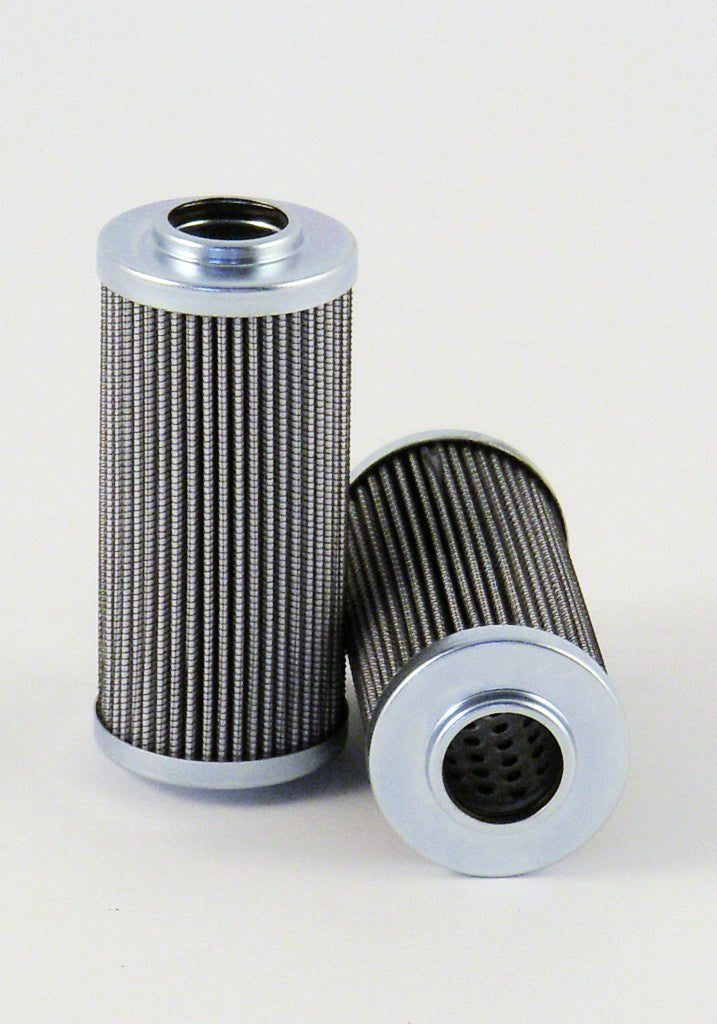

Stauff SP-030-E-20-B/4-OBE Replacement Return Filter
Stauff SP-030-E-20-B/4-OBE Replacement Return Filter
SP-030-E-20-B/4-OBE
Stauff
Stauff
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 49,5 Inner Diameter (mm): 23,9 Length (mm): 211 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
$98.00
Unit price
per
0.29 kg
8421.99.90
Germany
0.35 kg
8421.99.90
Italy
0.34 kg
8421.99.90
France
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 49,5 Inner Diameter (mm): 23,9 Length (mm): 211 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 50.0 mm |
| Inner Diameter | 24.5 mm |
| Length | 213.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 20 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
