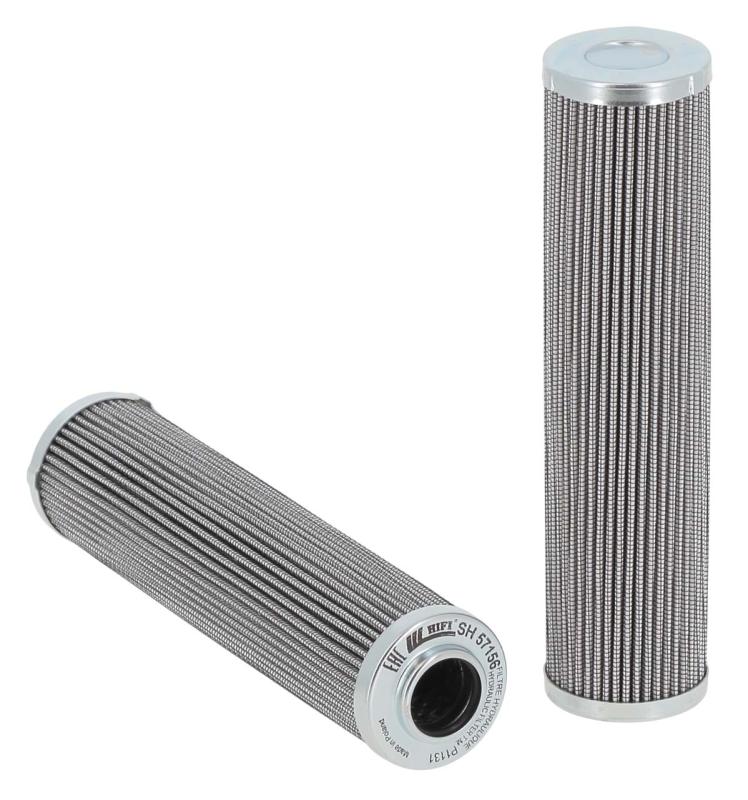

Stauff SP-030-E-10-B/4 Replacement Pressure Filter
Stauff SP-030-E-10-B/4 Replacement Pressure Filter
SP-030-E-10-B/4
Stauff
Stauff
Description
Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 49,5 Inner Diameter (mm): 23,9 Length (mm): 207 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
$83.00
Unit price
per
0.27 kg
8421.99.90
Germany
0.4 kg
8421.99.90
United Kingdom
0.4 kg
8421.99.90
Italy
0.37 kg
8421.99.90
France
Description
Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 49,5 Inner Diameter (mm): 23,9 Length (mm): 207 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 50.0 mm |
| Inner Diameter | 23.8 mm |
| Length | 209.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 21 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
