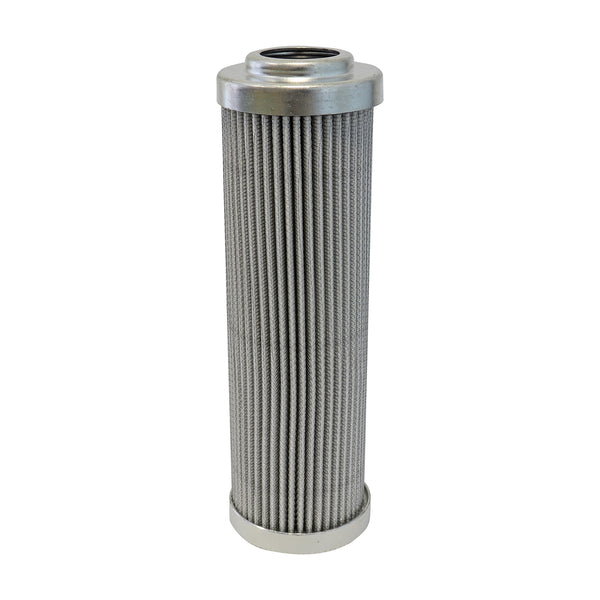

Stauff SE-030-H-05-B/4 Replaces the Stauff SE030H05B
Stauff SE-030-H-05-B/4 Replaces the Stauff SE030H05B
SE-030-H-05-B/4
Stauff
Stauff SE030H05B
Stauff
Stauff SE030H05B
Description
Replacement Filter Element for Pressure Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200
Brand:
Stauff
Sort by:
Ships in 25 Days
$109.00
Price$109.00/each
Shipped Wednesday, 30 April
Order within 12hrs 28mins
Order within 12hrs 28mins
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | $106.82 |
| 5 - 9 | $104.64 |
| 10+ | $102.46 |
0.37 kg
8421.99.90
Germany
Description
Replacement Filter Element for Pressure Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 47.0 mm |
| Inner Diameter | 22.1 mm |
| Length | 153.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 210 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
