MICROFIT MFHHP41007 Replaces the Schroeder SBF98014S3V

MICROFIT MFHHP41007
Representative product image Product image feedback

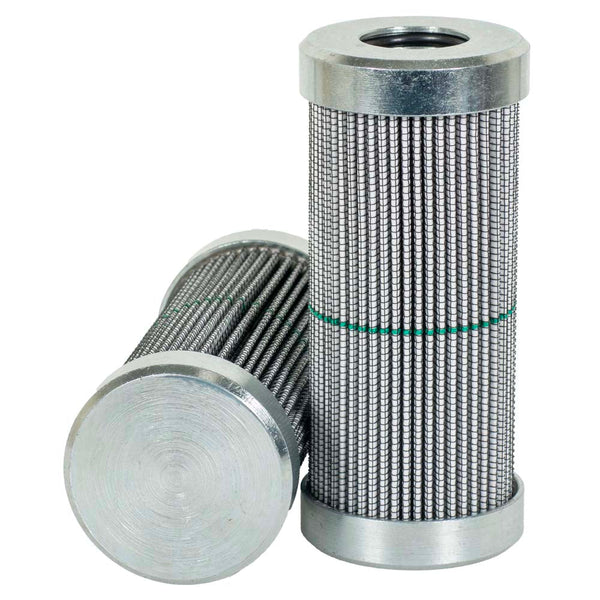

MICROFIT® UltraGen III MFHHP41007 Replaces the Schroeder SBF98014S3V

MFHHP41007
MICROFIT
Schroeder SBF98014S3V
Description

The MICROFIT® UltraGen III MFHHP41007 is the MICROFIT® approved replacement to the Schroeder SBF98014S3V. Engineered and manufactured in Great Britain the MFHHP41007

Brand: MICROFIT
Price Matched
$124.00
5
0.65 kg
8421.99.90
United Kingdom
0.29 kg
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP41007 is the MICROFIT® approved replacement to the Schroeder SBF98014S3V. Engineered and manufactured in Great Britain the MFHHP41007

Specification

StylePressure Filter
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 114.0 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 210 BAR
Seal MaterialViton
Temperature Range -25 - +120°C

Approved Product

Find out more
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBF98014S3V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 114.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
