MICROFIT MFHLP30996 Replaces the Schroeder SBF96508S7B

MICROFIT MFHLP30996

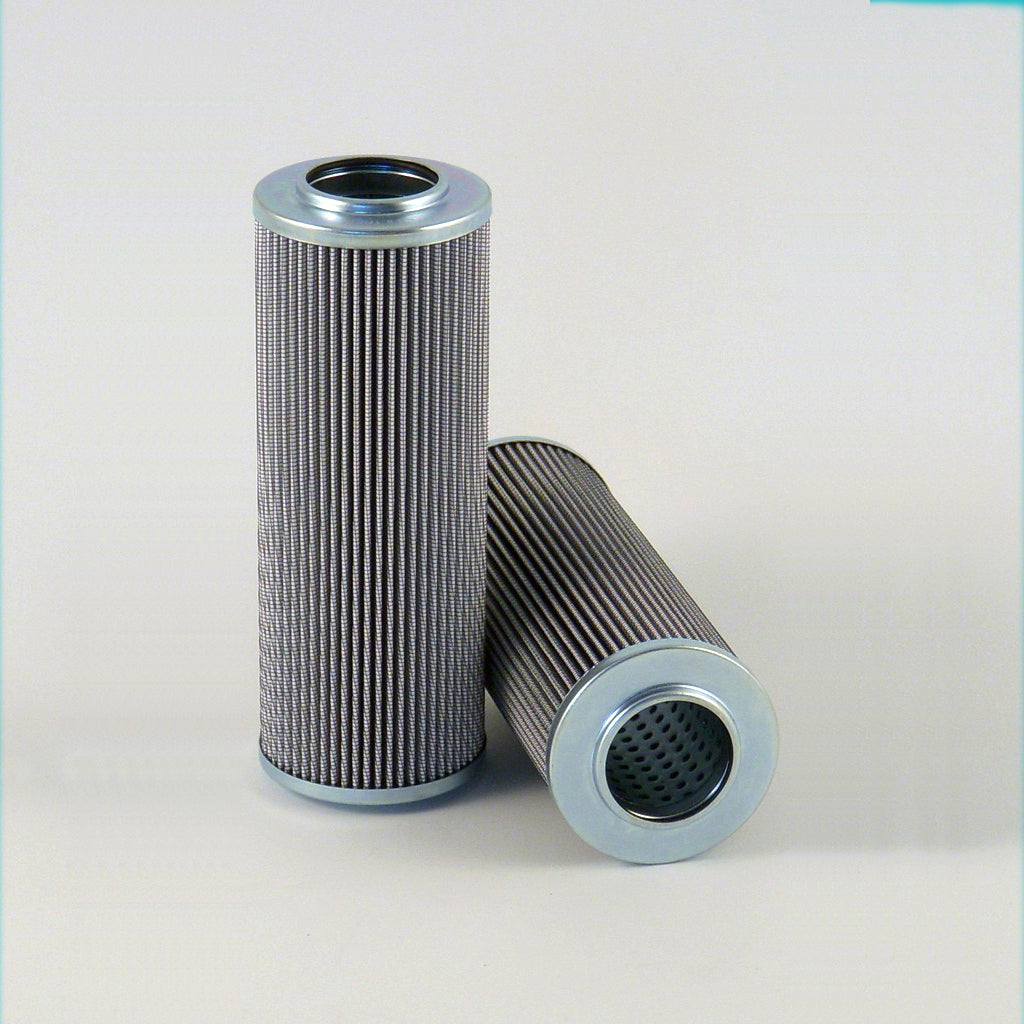

Representative product image Product image feedback

MICROFIT® UltraGen III MFHLP30996 Replaces the Schroeder SBF96508S7B

MFHLP30996
MICROFIT
Schroeder SBF96508S7B
Description

The MICROFIT® UltraGen III MFHLP30996 is the MICROFIT® approved replacement to the Schroeder SBF96508S7B. Engineered and manufactured in Great Britain the MFHLP30996

Brand: MICROFIT
Price Matched
$99.00
1.15 kg
8421.99.90
United Kingdom
0.52 kg
8421.99.90
Italy
0.54 kg
8421.99.90
France
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30996 is the MICROFIT® approved replacement to the Schroeder SBF96508S7B. Engineered and manufactured in Great Britain the MFHLP30996

Specification

StylePressure Filter
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 78 mm
Inner Diameter 43.2 mm
Length 213 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 21 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBF96508S7B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 78 mm
Inner Diameter 43.2 mm
Length 213 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
