Summary

Stauff RL-010-L-10-B Replaces the Stauff RL010L10B

Stauff RL010L10B

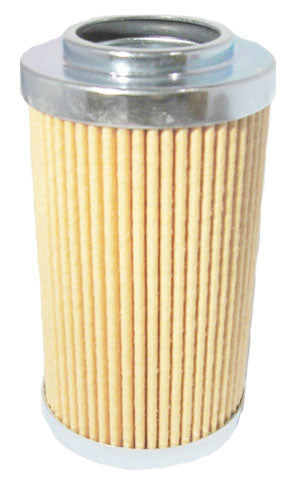

Representative product image Product image feedback

Stauff RL-010-L-10-B Replaces the Stauff RL010L10B

RL-010-L-10-B
Stauff
Stauff RL010L10B
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 58 Inner Diameter (mm): 32,2 Length (mm): 104,5 Sealing: NBR, β ratio >2

Brand: Stauff
Price Matched
$67.00
10
0.2 kg
8421.99.90
Germany
0.14 kg
8421.99.90
Italy
0.18 kg
8421.99.90
France
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 58 Inner Diameter (mm): 32,2 Length (mm): 104,5 Sealing: NBR, β ratio >2

Specification

StyleReturn Filter
Efficiency 110µ @ β2
Outer Diameter 58 mm
Inner Diameter 32.2 mm
Length 105 mm
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 6 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Genuine Product

Find out more
Stauff Brand Logo

Stauff Product

Genuine Stauff RL-010-L-10-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 58 mm
Inner Diameter 32.2 mm
Length 105 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 6 BAR
Seal Nitrile
Temperature Range -30 - +100°C
