MICROFIT MFHHP40776 Replaces the Rexroth R928018036

MICROFIT MFHHP40776

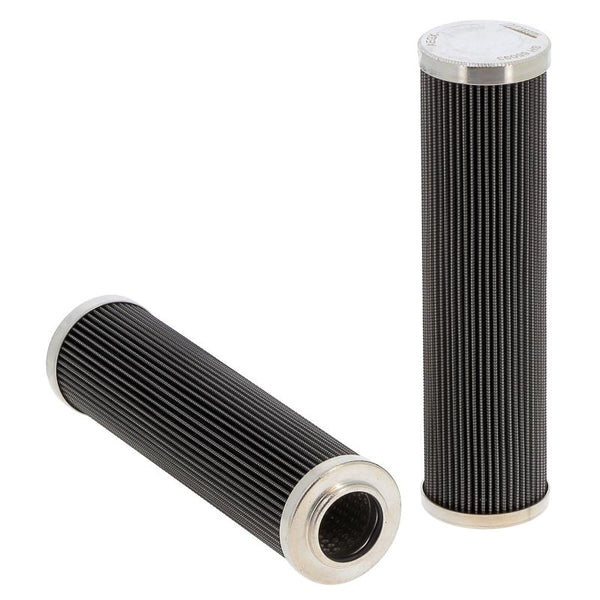

Representative product image Product image feedback

MICROFIT® UltraGen III MFHHP40776 Replaces the Rexroth R928018036

MFHHP40776
MICROFIT
Rexroth R928018036
Description

The MICROFIT® UltraGen III MFHHP40776 is the MICROFIT® approved replacement to the Rexroth R928018036. Engineered and manufactured in Great Britain the MFHHP40776

Brand: MICROFIT
Price Matched
$260.00
1.8 kg
8421.99.90
United Kingdom
0.82 kg
8421.99.90
Italy
0.72 kg
8421.99.90
France
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40776 is the MICROFIT® approved replacement to the Rexroth R928018036. Engineered and manufactured in Great Britain the MFHHP40776

Specification

StylePressure Filter
Efficiency 125µ
Outer Diameter 60 mm
Inner Diameter 34.2 mm
Length 230 mm
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 210 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Rexroth Brand Logo

Same Fit-Form & Function

As the Genuine Rexroth R928018036

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60 mm
Inner Diameter 34.2 mm
Length 230 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Nitrile
Temperature Range -30 - +100°C
