MICROFIT MFHHP40765 Replaces the Rexroth R928017963

MICROFIT MFHHP40765
Representative product image Product image feedback

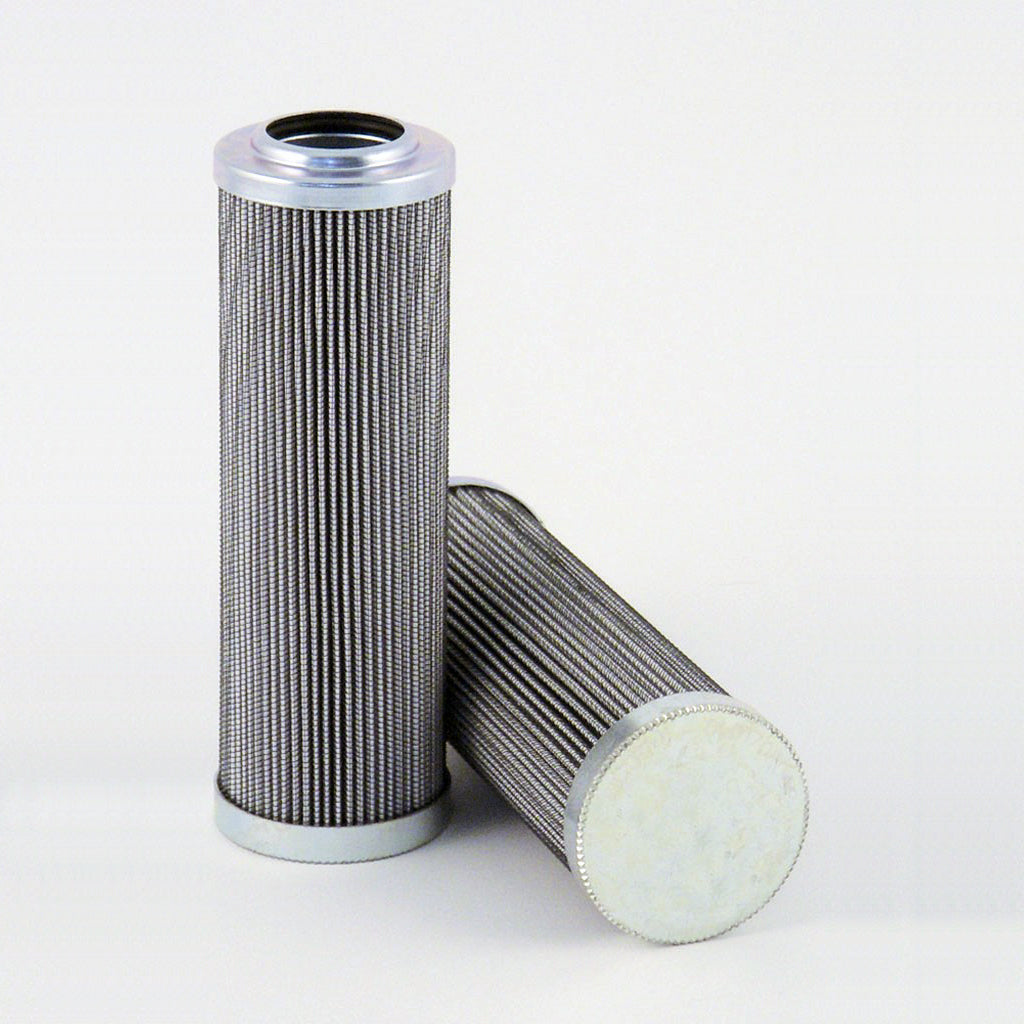

MICROFIT® UltraGen III MFHHP40765 Replaces the Rexroth R928017963

MFHHP40765
MICROFIT
Rexroth R928017963
Description

The MICROFIT® UltraGen III MFHHP40765 is the MICROFIT® approved replacement to the Rexroth R928017963. Engineered and manufactured in Great Britain the MFHHP40765

Brand: MICROFIT
Price Matched
$147.00
1.24 kg
8421.99.90
United Kingdom
0.56 kg
8421.99.90
Italy
0.68 kg
8421.99.90
France
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40765 is the MICROFIT® approved replacement to the Rexroth R928017963. Engineered and manufactured in Great Britain the MFHHP40765

Specification

StylePressure Filter
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 60 mm
Inner Diameter 34.2 mm
Length 179 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 210 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Rexroth Brand Logo

Same Fit-Form & Function

As the Genuine Rexroth R928017963

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 60 mm
Inner Diameter 34.2 mm
Length 179 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Nitrile
Temperature Range -30 - +100°C
