Stauff RE-070-G-05-B/4 Replaces the Stauff R240G05B4
Stauff RE-070-G-05-B/4 Replaces the Stauff R240G05B4
RE-070-G-05-B/4
Stauff
Stauff R240G05B4
Stauff
Stauff R240G05B4
Description

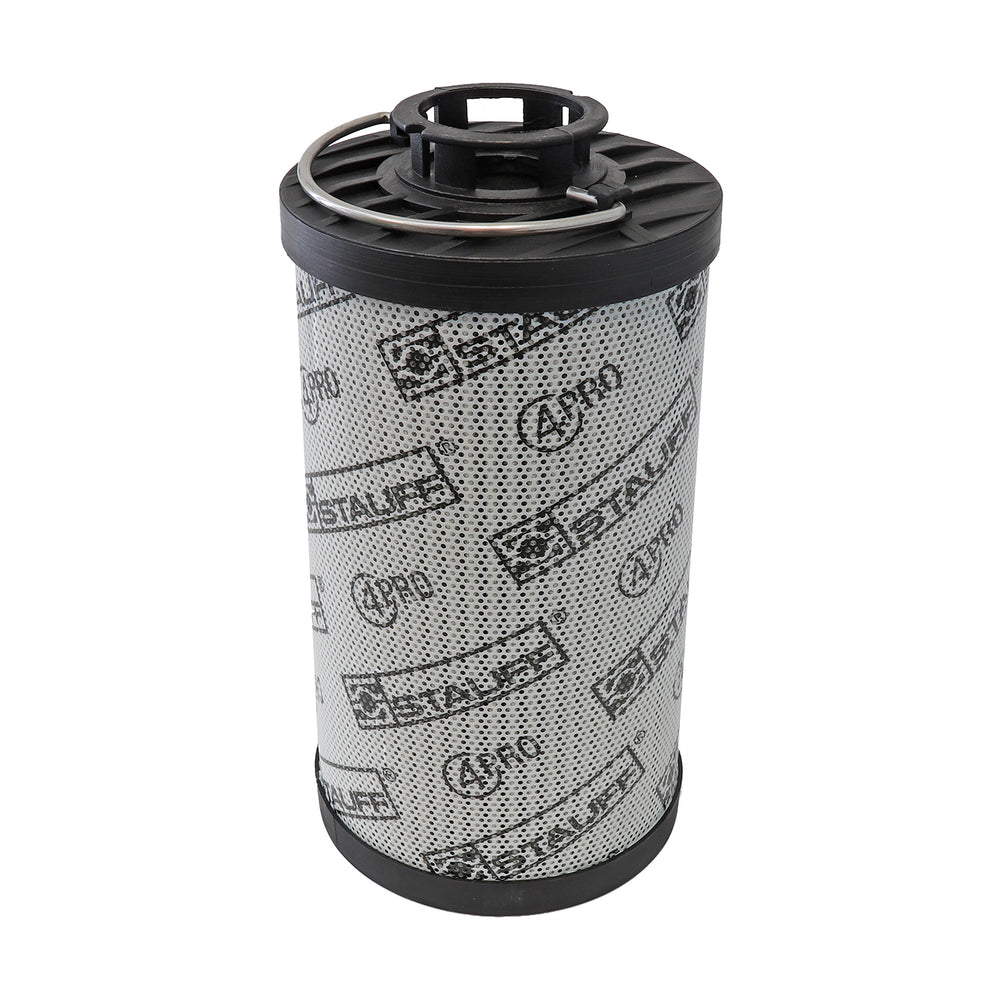

Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 203 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
$125.00
Unit price
per
0.43 kg
8421.99.90
Germany
0.54 kg
8421.99.90
Italy
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 203 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 73.5 mm |
| Inner Diameter | 34.2 mm |
| Length | 203.0 mm |
| Bypass Pressure | 3.0 BAR |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 20 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
