MICROFIT MFHR50188 Replaces the Donaldson P164900

MICROFIT MFHR50188

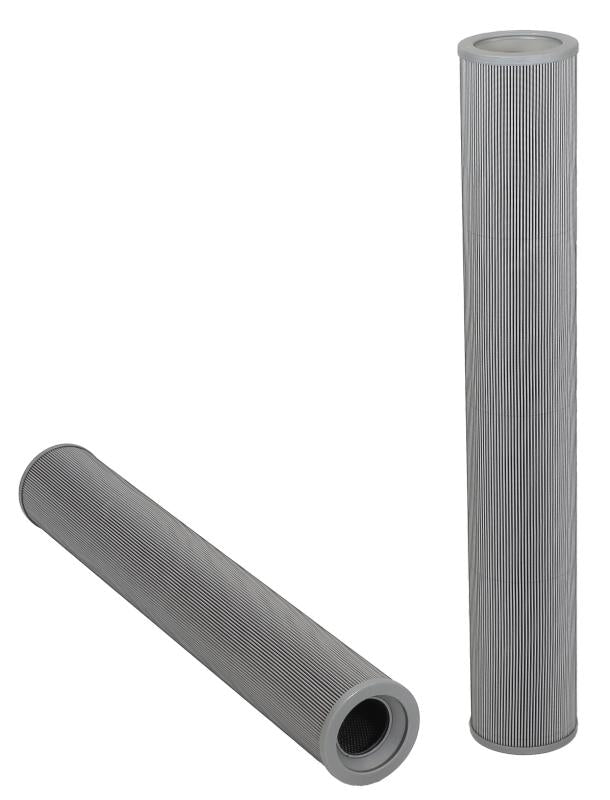

Representative product image Product image feedback

MICROFIT® UltraGen III MFHR50188 Replaces the Donaldson P164900

MFHR50188
MICROFIT
Donaldson P164900
Description

The MICROFIT® UltraGen III MFHR50188 is the MICROFIT® approved replacement to the Donaldson P164900. Engineered and manufactured in Great Britain the MFHR50188

Brand: MICROFIT
Price Matched
$609.00
16.31 kg
8421.99.90
United Kingdom
7.4 kg
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR50188 is the MICROFIT® approved replacement to the Donaldson P164900. Engineered and manufactured in Great Britain the MFHR50188

Specification

StyleReturn Filter
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 152.0 mm
Inner Diameter 83.4 mm
Length 980.0 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Donaldson Brand Logo

Same Fit-Form & Function

As the Genuine Donaldson P164900

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 152.0 mm
Inner Diameter 83.4 mm
Length 980.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
