Stauff NL-630-F-10-B/4 Replaces the Stauff NL630F10B4
Stauff NL-630-F-10-B/4 Replaces the Stauff NL630F10B4
NL-630-F-10-B/4
Stauff
Stauff NL630F10B4
Stauff
Stauff NL630F10B4
Description

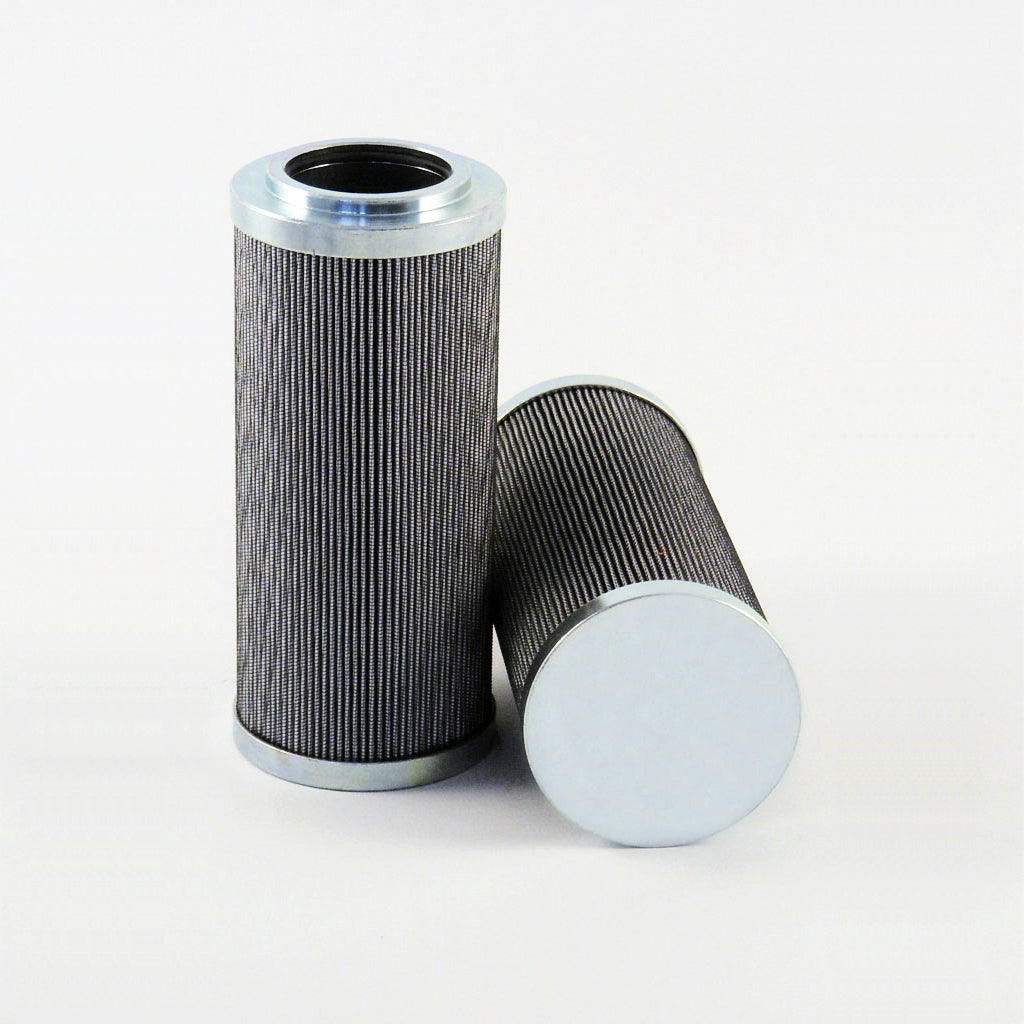

Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 99,7 Inner Diameter (mm): 60,3 Length (mm): 399 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
$813.00
Unit price
per
3.37 kg
8421.99.90
Germany
2.78 kg
8421.99.90
France
4.04 kg
8421.99.90
Italy
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 99,7 Inner Diameter (mm): 60,3 Length (mm): 399 Sealing: NBR, β ratio >200Specification
Style | DIN Pressure Filter |
Efficiency 1 | 10µ @ β200 |
Efficiency 2 | 12µ @ β1000 |
Outer Diameter | 100.0 mm |
Inner Diameter | 60.2 mm |
Length | 400.0 mm |
Media | Glass Fiber |
Flow Direction | OUT-IN |
Δ Collapse Pressure | 210 BAR |
Seal Material | Nitrile |
Temperature Range | -30 - +100°C |
