Stauff NL-100-E-10-B/4 Replacement DIN Pressure Filter
Stauff NL-100-E-10-B/4 Replacement DIN Pressure Filter
NL-100-E-10-B/4
Stauff
Stauff
Description

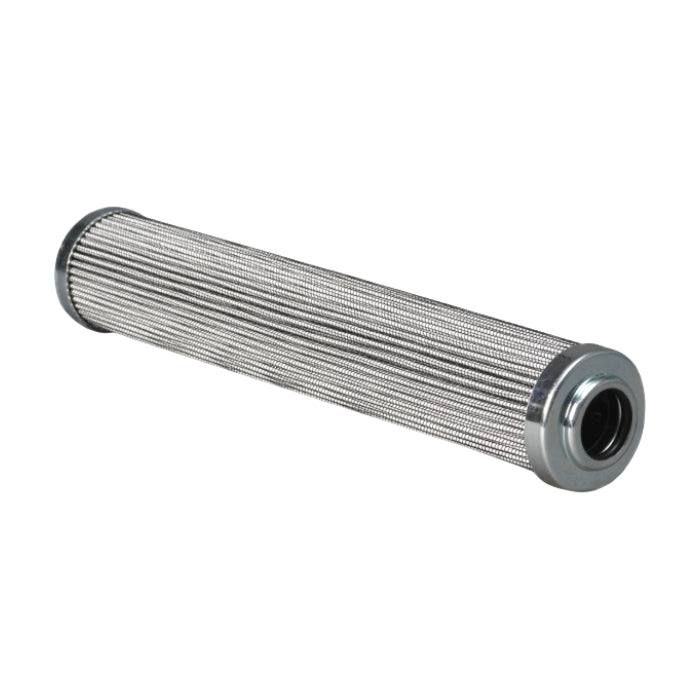

Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 44,5 Inner Diameter (mm): 22,2 Length (mm): 249 Sealing: NBR, β ratio >200
Brand:
Stauff
$116.00
Shipped Wednesday, 16 April
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | $113.68 |
| 5 - 9 | $111.36 |
| 10 - + | $109.04 |
0.34 kg
8421.99.90
Germany
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 44,5 Inner Diameter (mm): 22,2 Length (mm): 249 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 44.5 mm |
| Inner Diameter | 22.3 mm |
| Length | 248.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 21 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
