MICROFIT MFHR56997 Replaces the MP Filtri MF400-2M25N

MICROFIT MFHR56997

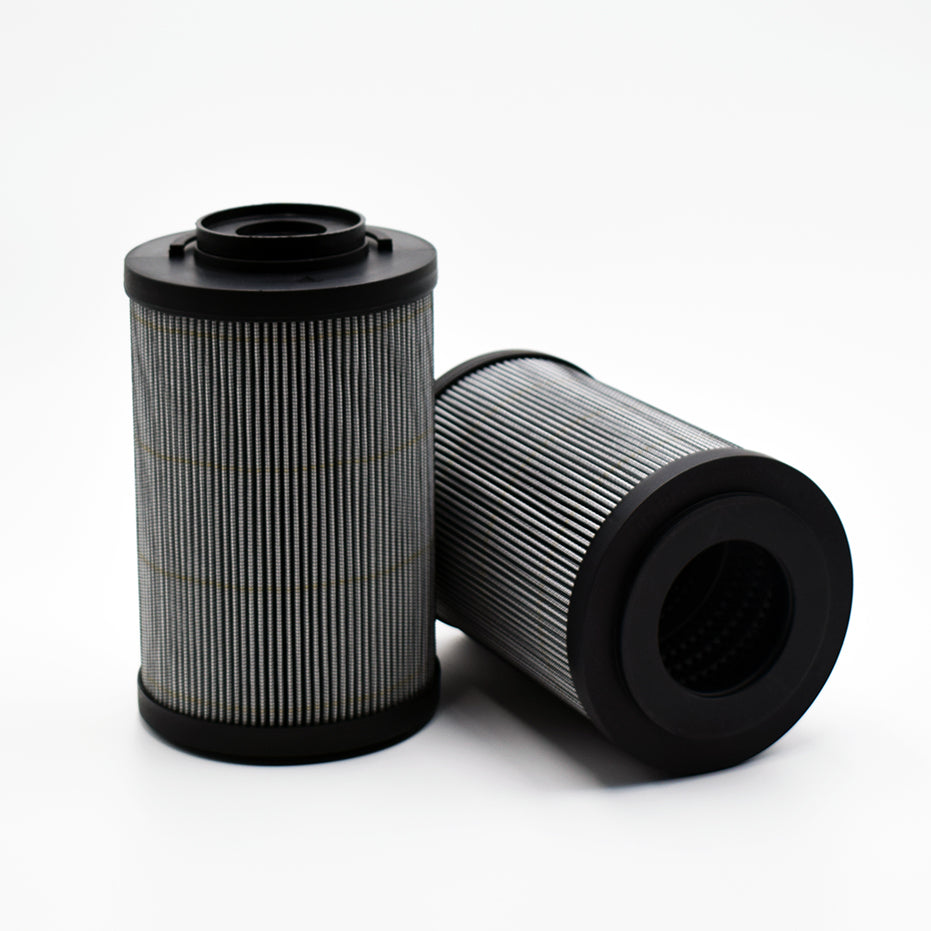

Representative product image Product image feedback

MICROFIT® UltraGen III MFHR56997 Replaces the MP Filtri MF400-2M25N

MFHR56997
MICROFIT
MP Filtri MF400-2M25N
Description

The MICROFIT® UltraGen III MFHR56997 is the MICROFIT® approved replacement to the MP Filtri MF400-2M25N. Engineered and manufactured in Great Britain the MFHR56997

Brand: MICROFIT
Price Matched
$119.00
2.43 kg
8421.99.90
United Kingdom
1.1 kg
8421.99.90
Italy
1.06 kg
8421.99.90
France
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR56997 is the MICROFIT® approved replacement to the MP Filtri MF400-2M25N. Engineered and manufactured in Great Britain the MFHR56997

Specification

StyleReturn Filter
Efficiency 125µ
Outer Diameter 130.0 mm
Inner Diameter 64.5 mm
Length 204.0 mm
Bypass Pressure 1.7 BAR
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
MP Filtri Brand Logo

Same Fit-Form & Function

As the Genuine MP Filtri MF400-2M25N

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Return Filter
Outer Diameter 130.0 mm
Inner Diameter 64.5 mm
Length 204.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
