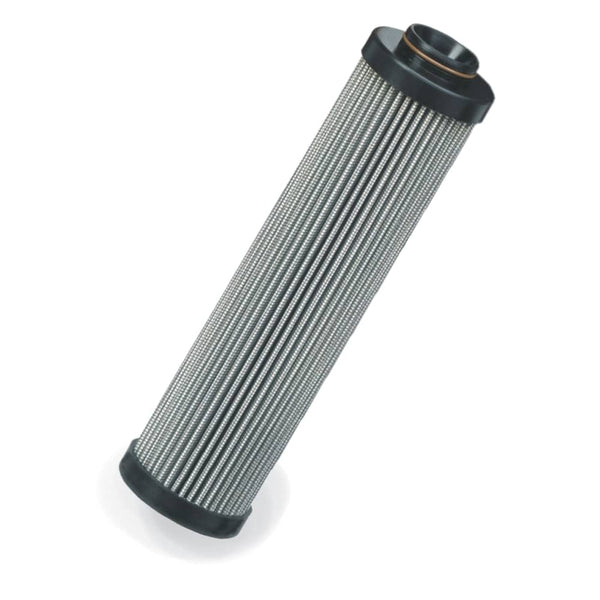

Parker G02724Q Replacement Pressure Filter
Parker G02724Q Replacement Pressure Filter
Parker
Replacement Elements - 22PD-32PD Series (G02724Q)
Parker 22PD/32PD Series High Pressure Duplex Filters utilise a duplex design containing a changeover valve with integrated balancing valve and vent ports. This design offers continuous operation during element change.
High quality Glassfibre filtration media is applied in the replacement elements as standard.
Beside the normal elements, also High Strength (high collapse pressure) elements are available for situations where high differential pressure over the element can occur, for example when no bypass pressure valve is mounted.
Description
Replacement Elements - 22PD-32PD Series (G02724Q)Parker 22PD/32PD Series High Pressure Duplex Filters utilise a duplex design containing a changeover valve with integrated balancing valve and vent ports. This design offers continuous operation during element change.
High quality Glassfibre filtration media is applied in the replacement elements as standard.
Beside the normal elements, also High Strength (high collapse pressure) elements are available for situations where high differential pressure over the element can occur, for example when no bypass pressure valve is mounted.
Specification
Style | Pressure Filter |
Efficiency 1 | 5µ @ β200 |
Efficiency 2 | 7µ @ β1000 |
Outer Diameter | 60.0 mm |
Inner Diameter | 35.7 mm |
Length | 244.0 mm |
Media | Glass Fiber |
Flow Direction | OUT-IN |
Δ Collapse Pressure | 21 BAR |
Seal Material | Nitrile |
Temperature Range | -30 - +100°C |
